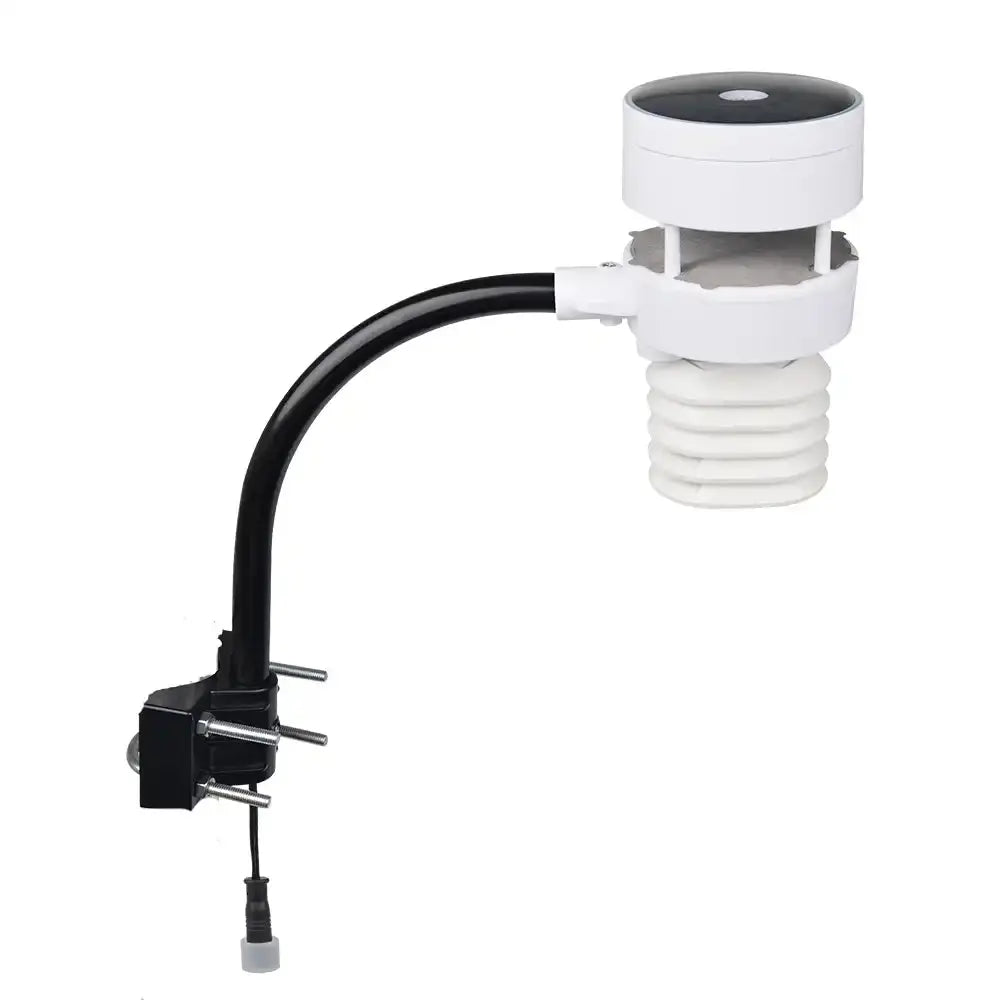

Ecowitt WS80 Ultrasonic Anemometer, UV, Light, Temperature & Humidity 6-in-1 Sensor
- Regular price
- £110.00 GBP
- Sale price
- £110.00 GBP
- Regular price
-
- Unit price
- / per

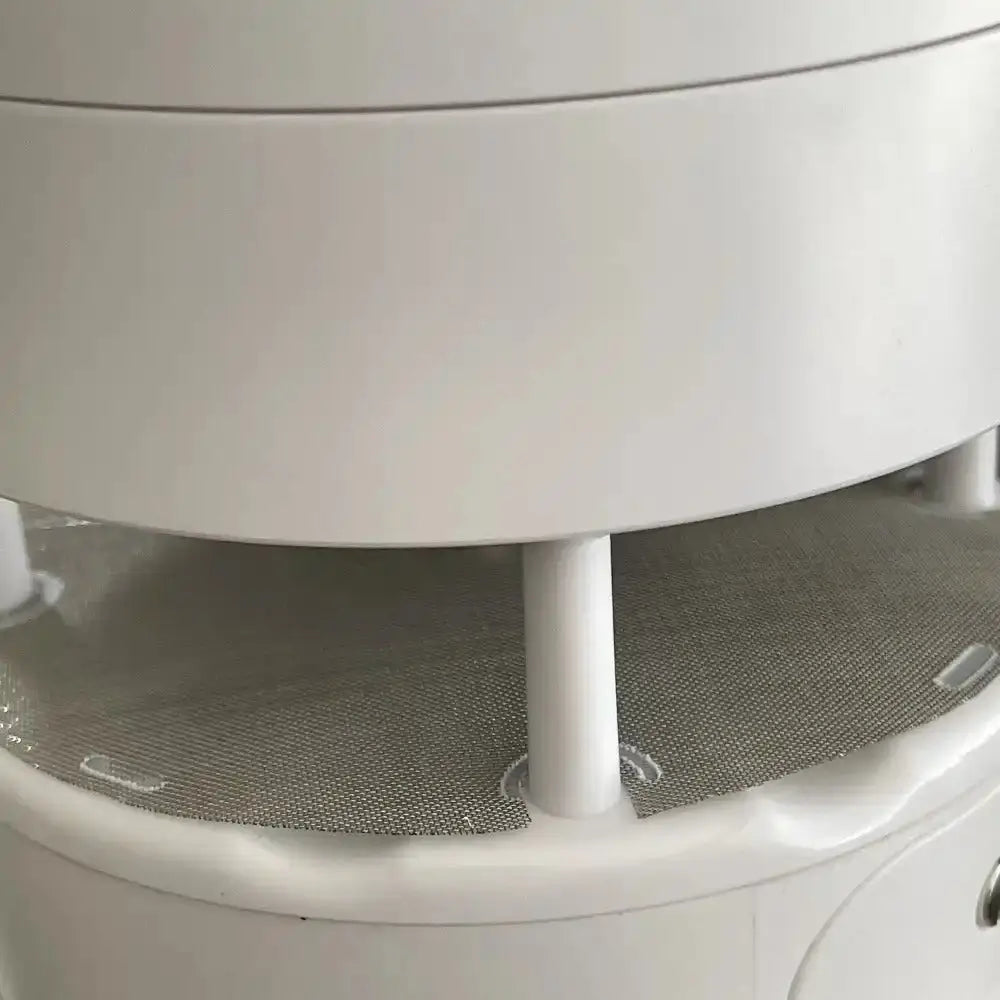

Add the WS80 solar powered ultrasonic anemometer with light, temperature and humidity to the Ecowitt WiFi gateway to obtain additional readings on your system. This revised sensor has no moving parts and an improved sensor plate for better performance during rain events.
Features
- Measures the following attributes
- Wind direction
- Wind speed
- UV
- Light level
- Temperature
- Humidity
- For use with an existing Ecowitt display console or WIFI gateway
Included
- Ultrasonic 6-in-1 Sensor sensor array with revised design for improved accuracy during rainfall. (NO Console or gateway)
- Mounting Arm
- One set of U-bolts for installation on 1.25 "to 2" / 30mm to 50mm pole (not supplied)
- User Manual
Technical & Manual
- Transmission distance in open field: 150m (490 feet)
- 868MHz UK and European frequency
- Wind speed range: 0 - 40 m/s (0 - 89 mph)
- Wind speed accuracy: ±0.5m/s (1.5 mph) at speeds of < 10 m/s (22 mph) and ±5% at speeds of ≥ 10 m/s (22 mph)
- Wind gust: maximum of last 28 seconds
- UV-Index range: 0 - 15
- Light range: 0 – 120 kLux
- Light accuracy: ± 15%
- Sensor reporting interval: 4.8 seconds
- Power consumption
- Solar panel (built-in): 6.5V/4mA
- Backup Power: 2 x AA 1.5V LR6 Alkaline or 2 x AA 1.5V Lithium batteries (not included)
The manual for the WS80 Ultrasonic Anemometer with UV, Light, Temperature and Humidity can be viewed by clicking here.
To check which products this item can be used with click here to view the latest Ecowitt sensor matrix. All Ecowitt products we supply are 868MHz and suitable for use with others using the same frequency.
- 5 stars: 4 (100%)
- 4 stars: 0 (0%)
- 3 stars: 0 (0%)
- 2 stars: 0 (0%)
- 1 star: 0 (0%)
Much more sensitive than the Davis anemometer. Must be used with an hp2550 console. Easy to pair it with the console.
Installed easily as a replacement for an existing model. Fittings all the same. Pairing trouble-free. It’s a bit disappointing that I needed to buy the replacement after only 3 years.
Amazing product and fantastic service and after sales care
At last an anemometer with accuracy and no moving parts. Really pleased to receive this and get it running. Nice to see Weather Spares are supplying the newest model of this.
Can you confirm this is Ecowitt part number WS80AN and will work with console HP2553AE? Thanks.
Yes this is the UK/European model with full model number WS80AN and uses the 868MHz frequency.
Aligning the anemometer ISS to north. With respect to the vertical mounting pole, should the curved sensor arm point north, or south?
The arm should point North as indicated on the top section where the arm joins the main sensor array.
