weather-spares-uk.myshopify.com- Ecowitt WH46D Indoor 7-in-1 Air Quality Sensor with LCD, CO2, PM1/PM2.5/PM4/PM10

Ecowitt WH46D Indoor 7-in-1 Air Quality Sensor with LCD, CO2, PM1/PM2.5/PM4/PM10

Name: Ecowitt WH46D Indoor 7-in-1 Air Quality Sensor with LCD, CO2, PM1/PM2.5/PM4/PM10
Brand: Ecowitt
SKU: ECWWH46D
Availability: InStock
Rating: 5.0 (1 reviews)

Regular price: £139.00 GBP
Sale price: £139.00 GBP
Regular price

UK VAT included. Shipping calculated at checkout.

The WH46D indoor sensor adds particle detection of PM1.0, PM2.5, PM4, PM10, along with CO2, Temperature and Humidity readings to your weather station.

The WH46D can be used as a standalone monitor as it has a built in LCD display. With a suitable gateway or weather station console you can upload to the Ecowitt network to store historic of the data as well as view near realtime readings.

Features

Measures indoor PM1, PM2.5, PM4, PM10, CO₂ concentration, Temperature and Humidityevery 60 seconds when powered by USB or every 10 minutes when powered with batteries (required)
LCD display showing temperature, humidity, Air Quality Index and CO₂
USB connection for indoor use only, battery backup (maximum 7 days)
CO₂ value calibration function available on the device
PM2.5 value Calibration function available when paired with a gateway
When paired with a Wi-Fi Gateway:

Monitor live sensor data on the Live Data page of the Ecowitt app (requires the gateway and your phone using the same Wi-Fi network)
Displays current PM1.0/PM2.5/PM4/PM10 concentration/AQI and 24H AQI and air quality level index on the Live Data page of the app
Displays current CO2 concentration and 24H average CO2 concentration on the Live Data page of the WS View app
Displays temperature and humidity data where the sensor located
Calibration function available for PM2.5 value

When paired with a suitable Weather Station Console:

The PM1.0, PM2.5, PM4, PM10 and CO2 data automatically scrolls displaying on the screen every 5 seconds
Calibration function available for PM2.5 value

When uploaded to Ecowitt Weather Server:

View current sensor data & history records & graph on the website
Set and receive email alerts from the server
Remote monitoring with smart phone, laptop, or computer by visiting the website

Included

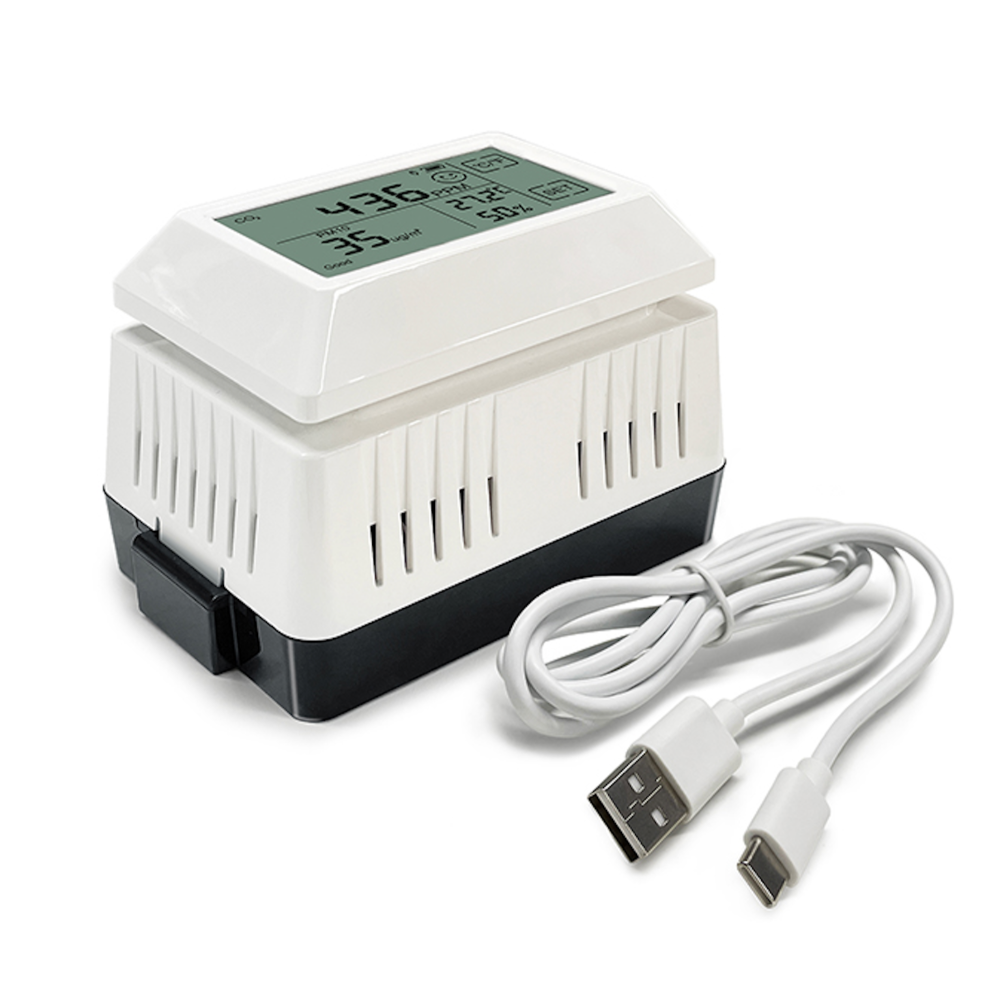

WH46DA Indoor 7-in-1 Air Quality Sensor with LCD
USB power cable
Instruction manual included in paper format or available by as a download below

Technical & Manual

Measurement	Range	Accuracy	Resolution
PM1.0 & PM 2.5	0~1000ug/m3	0 to 100 ug/m3, ±5ug/m3+5%】 >100 ug/m3, ±10 %	1ug/m3
PM4.0 & PM 10	0~1000ug/m3	0 to 100 ug/m3, ±25 ug/m3 >100 ug/m3, ±25 %	1ug/m3
CO₂	0- 40000ppm	400 - 2000 ppm, ±(50 ppm + 5% of reading) Accuracy drift per year, ± (5ppm + 5% of reading)	1ppm
Temperature	-10°C - 60°C	±0.8°C between 15°C & 35°C ±1.5°C outside above range	0.1°C
Humidity	1%~99%RH	±6%RH between 15°C to 35°C ± 9%RH outside above range Accuracy drift per year < 0.25%RH	1%RH

Transmission distance in open field: 100m(300 feet)
868MHz UK and European frequency (A suffix)
Sensor reporting interval: 1 minute on USB power, 10 minutes on batteries
Power consumption

Particle Detection Sensor: AC power (5V 1A) - Not included
2 x AA 1.5V Batteries for back up - Not included

The manual for the WH46D sensor can be found by clicking here.

To check which products this item can be used with click here to view the latest Ecowitt sensor matrix. All Ecowitt products we supply are 868MHz and suitable for use with others using the same frequency.

UK USB Power Adapter 5v_weatherspares_co_uk

add a 5v USB power adapter £8.00

5 stars: 1 (100%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Wh46d

I purchased the wh46d out of curiosity about monitoring the air quality in my house as I live not too far from a busy road .

What it has taught me is that the road doesn't effect the quality of the air inside of my house as much as I thought but the air inside the house is the issue.

It's taught me when to ventilate, where the problem areas are and I've researched what needs to be done. The air is a lot cleaner and sleeping is a lot better including my asthma.

I do have the ecowitt eco system such as room humidity and temp sensors throughout my house . So it all helps me monitor what is going on.

Brilliant device, wish we could have more then one 46d connected .

Worth it

Weatherspares brilliant as always and affordable compared to everyone else. Thank you very much

How do I get this connected to the Ecowitt Hp2560_C console? The sensor is not listed in the sensors screen, the manual for the WH46D says add it via the ecowitt app, but mine doesn't list add sensors. The console and app is upto date.

Weather Spares®

There are a number of reasons you may have an issue:

1) Only a single WH45 or WH46 sensor can be connected to the console, not both.
2) The console frequency is different to the sensor (868MHz) unfortunately we can't see any other orders on our system to confirm this, but it is printed on the console rear.
3) The console lists the sensor as AQIN (Air Quality Indoors) rather than a specific number in column 1 of the sensors and this may be disabled and need changing to Search in the setting.

Hopefully one of these will help get you connected and running.
