Davis AirLink™ Professional Air Quality Sensor

The Invisible Dangers of Air Quality

The air inside and outside your home is invisible even when it is dangerous. Breathing polluted air can lead to serious health issues, especially in children and adults with respiratory and health issues.

Know What You Breathe

AirLink measures outside or inside air quality and uploads readings to WeatherLink in realtime. Users will know the quality of the air they breathe. This information is vital to anyone with an air-quality sensitive family member, as well as those in cities, some workplace environments and where fires are likely to happen. AirLink is, literally, a product for everyone who cares about what they breathe.

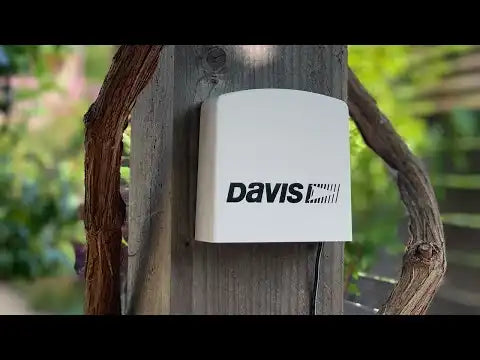

The sensors can be installed indoors or outdoors and up to three sensors can be connected to an existing Davis weather station, giving Davis customers a new way to enhance their product. But no station is needed: new customers can use it as a stand-alone sensor.

Outdoor air-quality data is shown on the WeatherLink map so you you can compare you location to others in the area.

Features

• Accurate: Measures particulates as small as 0.3 micrometers with an accuracy of +/-10 micrograms per cubic meter in concentrations
• Real-Time Readings: See updates on your phone and computer every minute.
• Global Air Quality Indices: Choose from a growing list including US, Canada, Mexico, China, EU, UK, Australia, India, and South Korea.
• Wi-Fi Connected: Easily connect AirLink to your Wi-Fi network to send data to the Davis Cloud via 2.4GHz Wi-Fi (unsuitable for 5 or 6GHz Wi-Fi)
• Pair with a Weather Station: Use multiple AirLinks as stand-alone sensors or easily merge with your Davis weather station
• Compact Quiet Design: Low profile design with near-silent fan mounts on a wall or sits on a countertop. Includes outdoor protective cover and mountings
• Simple Setup: Quickly install AirLink by following the simple directions on the free WeatherLink app
• 1-Year Warranty: Enjoy peace of mind with Davis's reputation for quality and durability

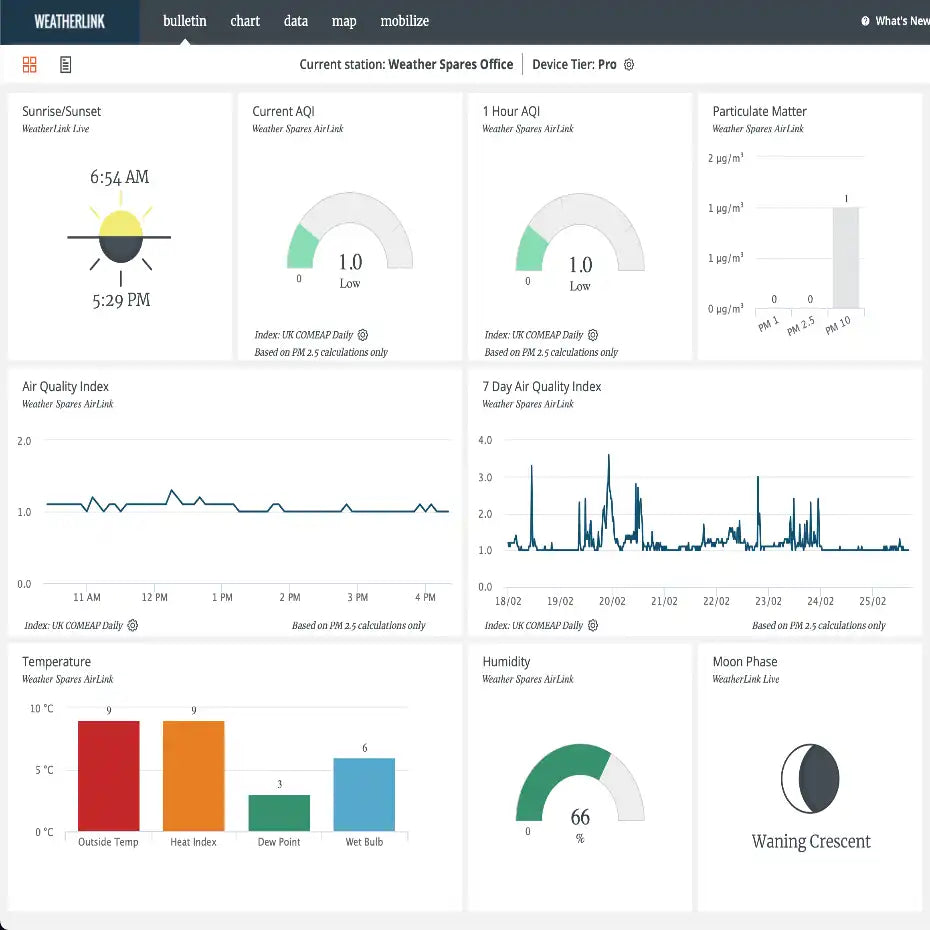

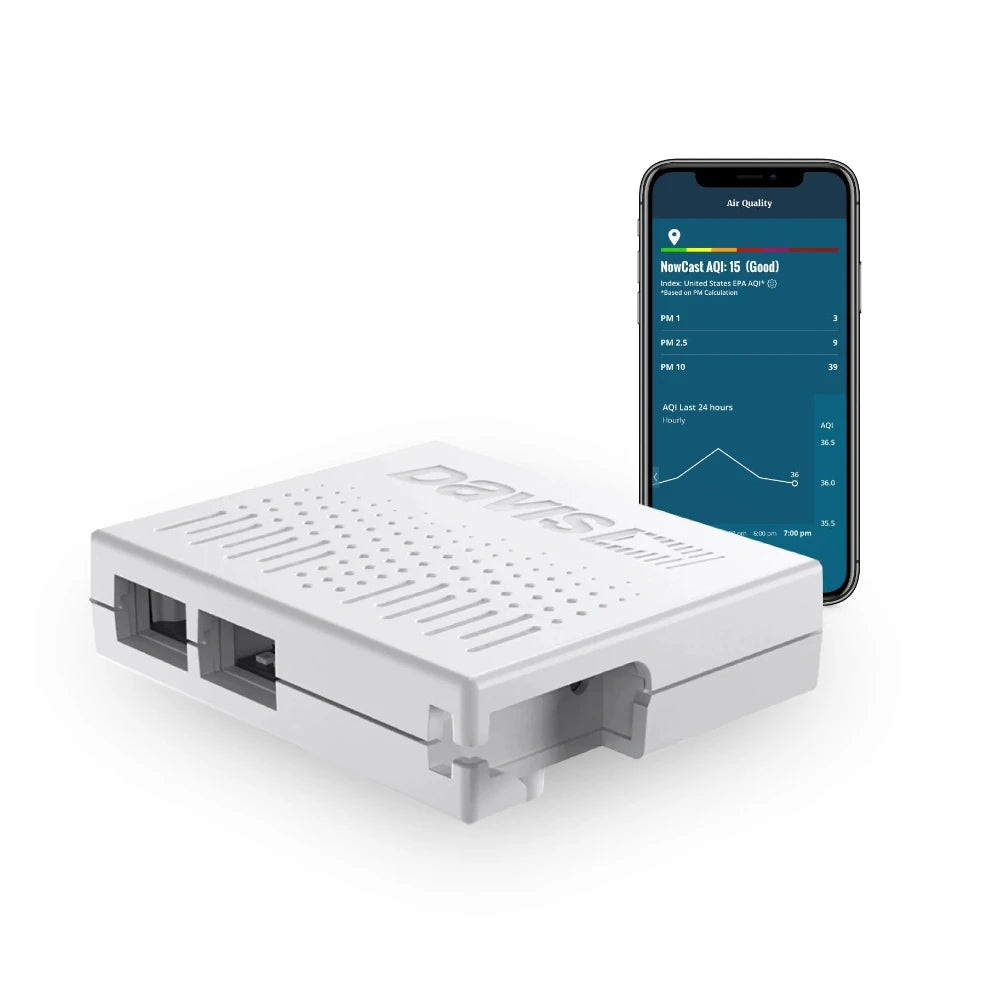

WeatherLink App: Data at Your Fingertips

Current Air Quality Index (AQI)

• Current Air Quality Index: Easily understand your air quality with a colour-coded description of conditions from a growing list of global indices
• NowCast Air Quality Index: The EPA's standard for reflecting rapidly changing air quality
• High Air Quality Index: Know exactly how high the air quality readings were today, and exactly when

Air Quality Trend

• Air Quality Trend: See a 24-hour air quality trend to know precisely how your air quality is changing
• Additional Weather Data: Temperature, humidity, dew point, heat index, and wet bulb – all updated every minute
• Alarms: Set text or email alarms for high air quality readings on WeatherLink.com.

Specification

• Operating Temperature +14°F to +140°F (−10°C to +60°C)
• AC Adapter 5VDC, 1000mA
• 2m power cable (extensions available)
• Current Draw Average: 100mA; Peak: 500mA
• Housing Material Rugged ABS Plastic
• Dimensions (height x width x depth)
• Sensor Housing 2" x 3.5" x 1" (5.1 cm x 8.9 cm x 2.5 cm)
• Optional Outside-Use Cover 4"x4.5"x1.5"(10.1cmx11.4cmx3.8cm)
• Weight
• Sensor Only 3.7 oz (106 g)
• Sensor with Mounting Bracket 4.3 oz (121 g)
• Sensor with Bracket & Outside-Use Cover 6.5 oz (183 g)
• Wi-Fi Frequency 2.4GHz 802.11b/g/n (not compatible with 5GHz or 6GHz Wi-Fi)
• Bluetooth Frequency Range 2402-2480MHz

Sensor Specification:

• Particulate Matter
• Particle Range of Measurement 0.3 to1.0μm; 1.0 to 2.5μm; 2.5 to 10μm
• Particle Resolution 1μg/m3
• Accuracy ±10 μg/m3
• Update Interval 1 minute
• Inside/Outside Relative Humidity
• Resolution and Units 0.1%
• Range 0.1% to 100%
• RH Accuracy ±2%
• Update Interval 1 minute
• Inside/Outside Temperature
• Resolution and Units Current Data: 0.1°
• Range -40° to +140°F (-40° to +60°C)
• Accuracy ±0.5°F(±0.3°C)(typical)
• Update Interval 1 minute
